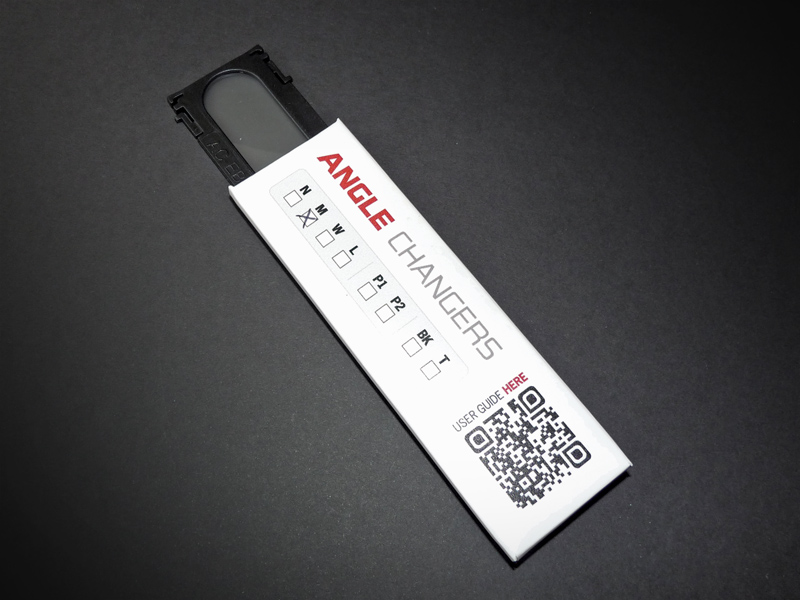

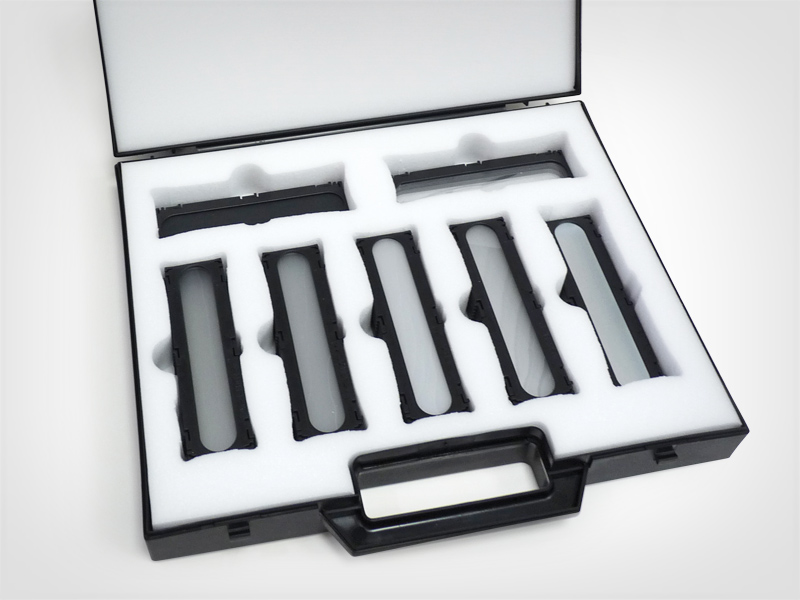

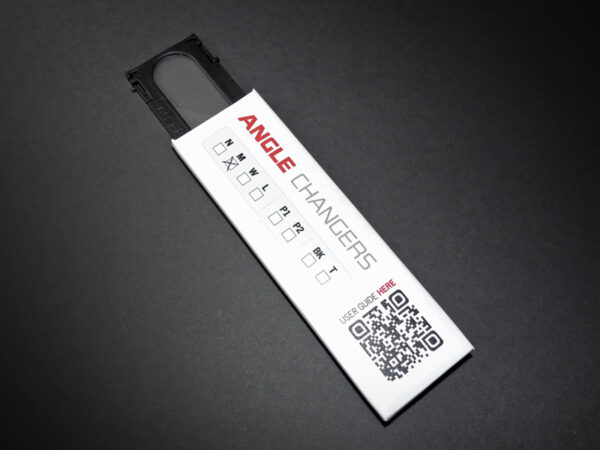

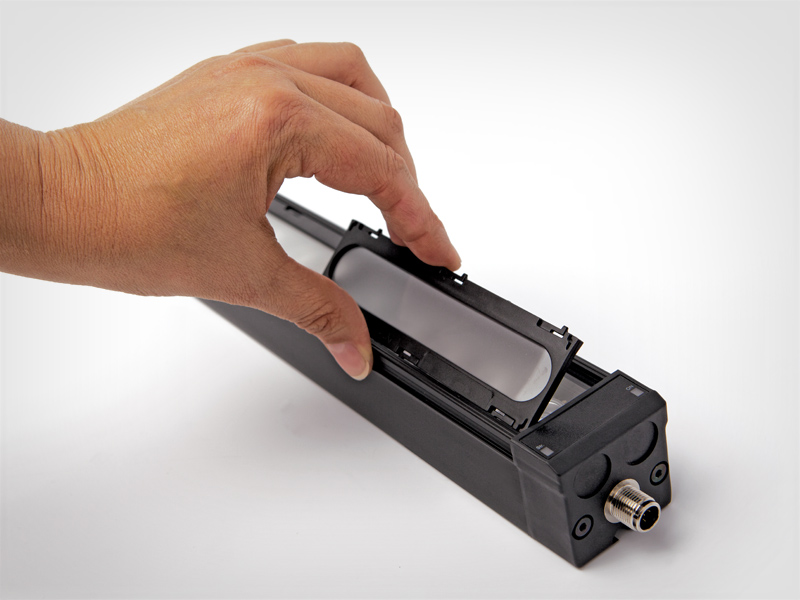

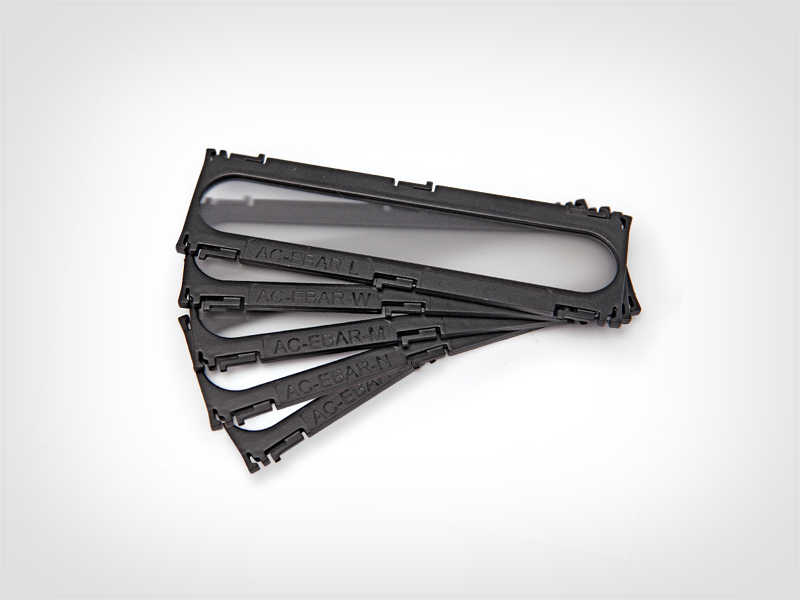

The patented* Angle Changers are the easiest way to change the illumination angle, allowing greater flexibility & the ability to adjust your lighting if your project changes. They are designed to securely clip on top of the EBARs. The Angle Changers can sustain 100g acceleration and they keep the IP protection. No need to dismantle the product!
* US Patent No.: US D976,449 S

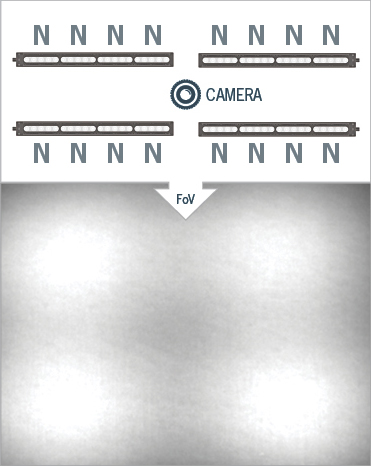

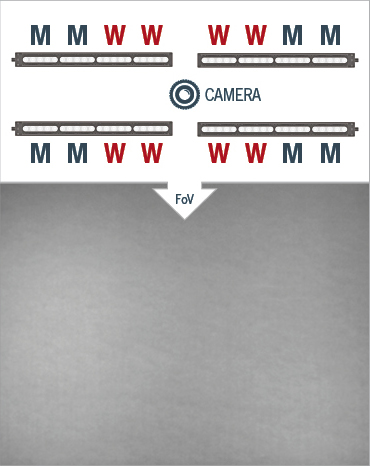

TPL Vision’s patented Curve Effect is a powerful tool for creating excellent homogeneity over large fields of view. Using the Angle Changers to vary the intensity of the illumination helps to eliminate the hot spot seen in the centre of the FoV, which can cause issues in pick and place and large FoV robotics applications. Through reducing the intensity of the illumination in the centre of the bar light with a wider Angle Changer, you can achieve a much more uniform image while retaining high brightness.

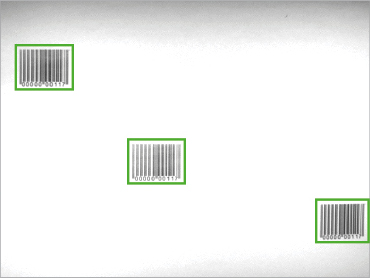

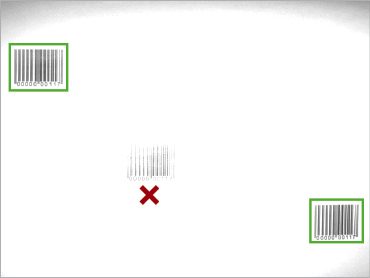

See below for our example of a typical large FoV application demonstrating the effectiveness of the Angle Changers:

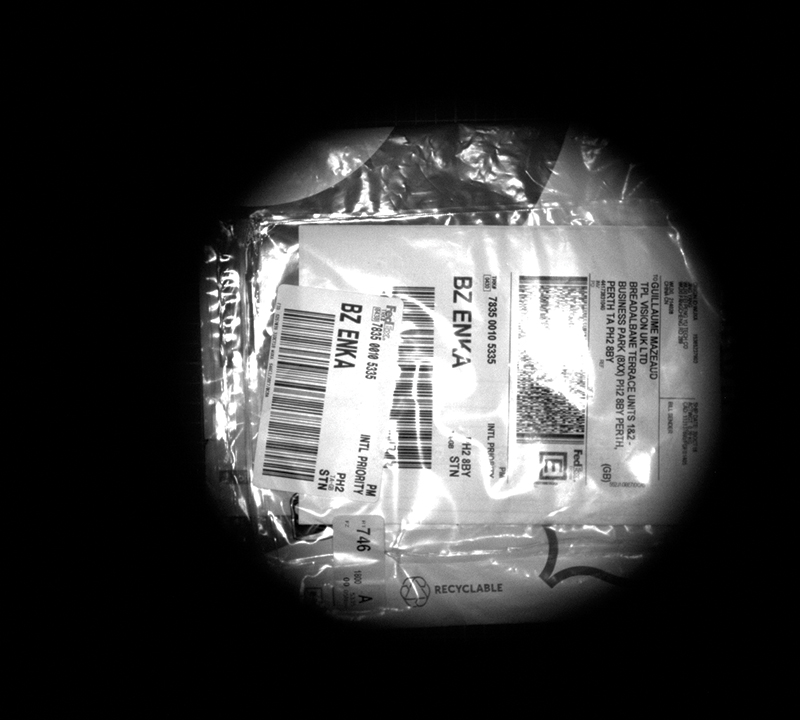

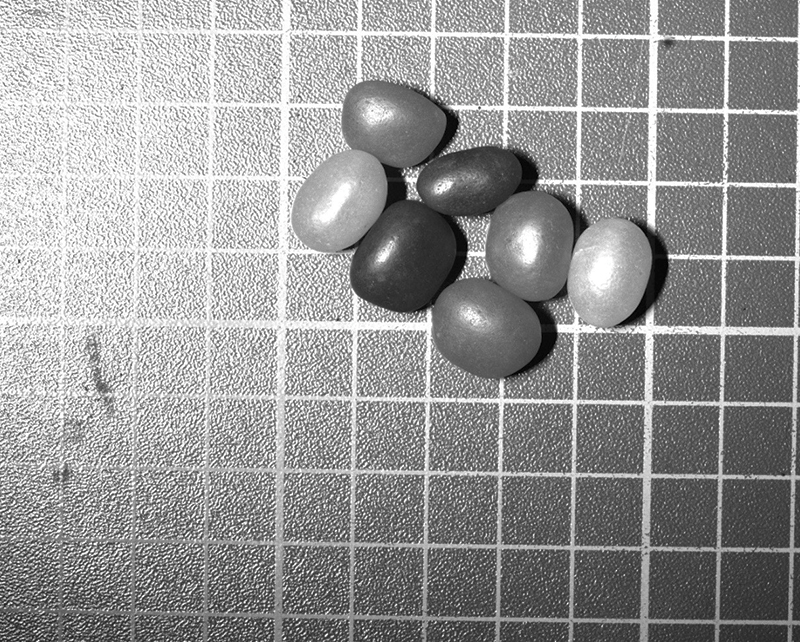

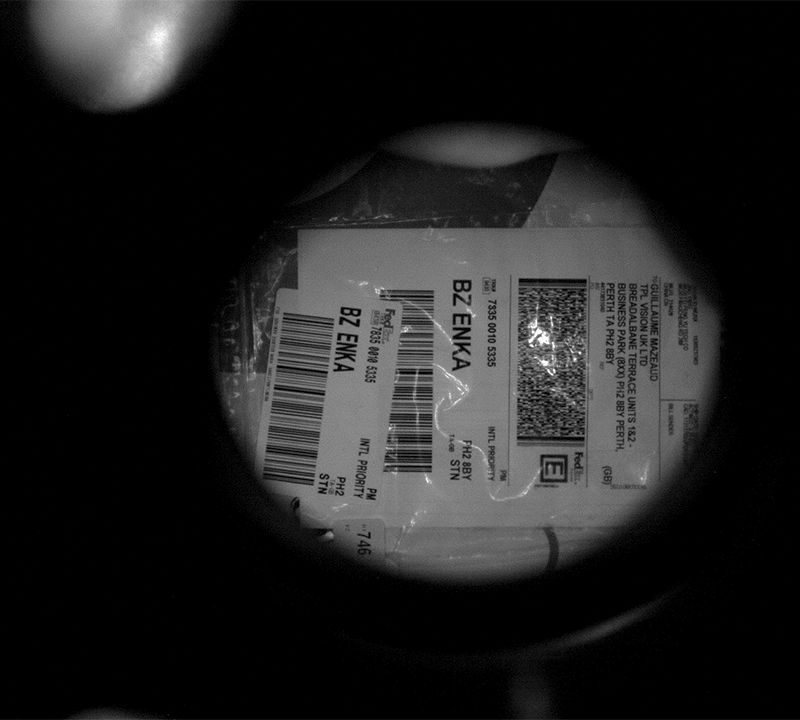

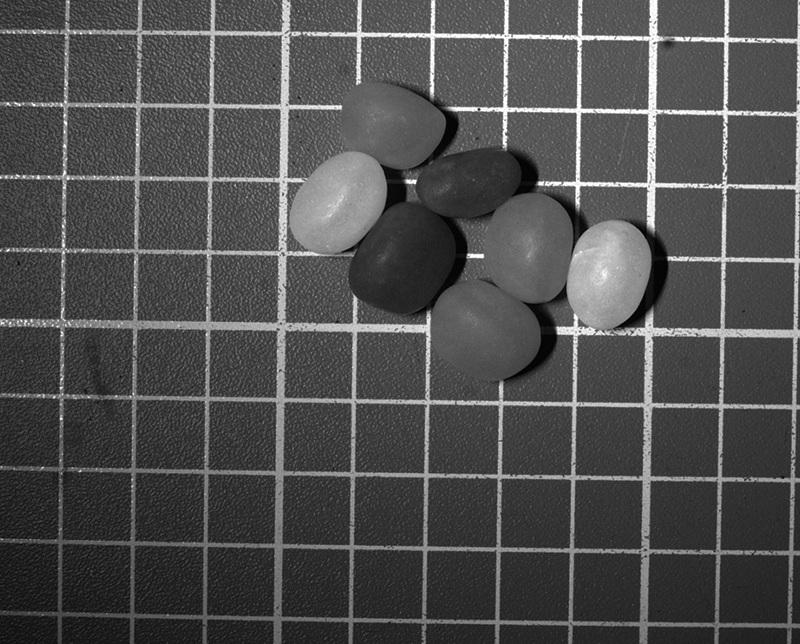

The rough and specular surface in the background is made more uniform by the polarisation effect.
Note: polarisers reduce the brightness output of illumination by around 50%.
Maximum EBAR length: 1250 mm. ±7° (UN) lens only.
Colours: WHI, 470, 525, 630, 850. Note: Not suitable for UV use.
TPL Vision’s patented Curve Effect is a powerful tool for creating excellent homogeneity over large fields of view. Using the Angle Changers to vary the intensity of the illumination helps to eliminate the hot spot seen in the centre of the FoV, which can cause issues in pick and place and large FoV robotics applications. Through reducing the intensity of the illumination in the centre of the bar light with a wider Angle Changer, you can achieve a much more uniform image while retaining high brightness.
See below for our example of a typical large FoV application demonstrating the effectiveness of the Angle Changers:
The rough and specular surface in the background is made more uniform by the polarisation effect.
Note: polarisers reduce the brightness output of illumination by around 50%.
Maximum EBAR length: 1250 mm. ±7° (UN) lens only.
Colours: WHI, 470, 525, 630, 850. Note: Not suitable for UV use.
