Medium MBACK+ OverDrive

High power backlight with thin borders

Technical sheet User guide OverDrive CAD

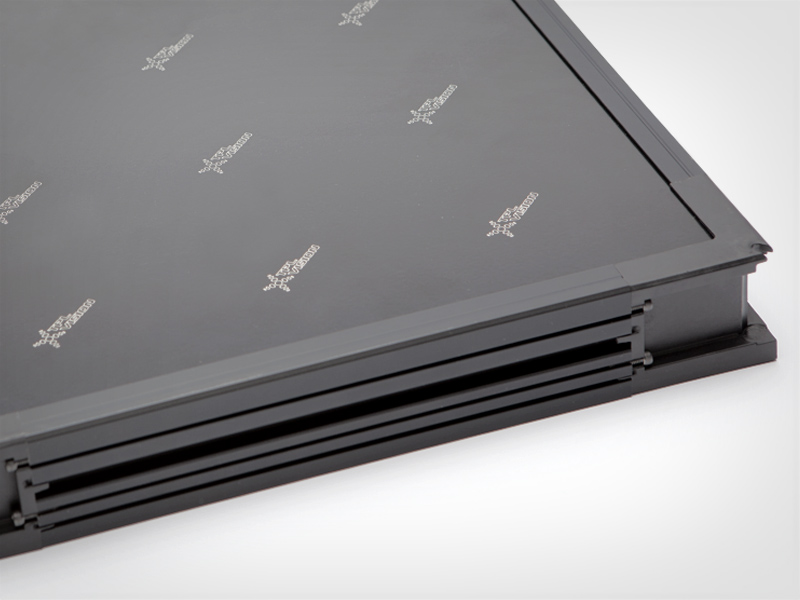

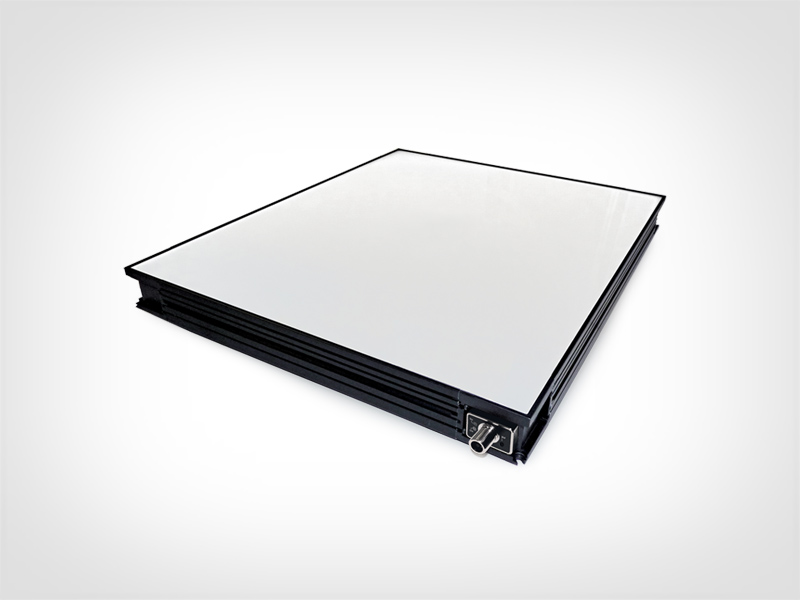

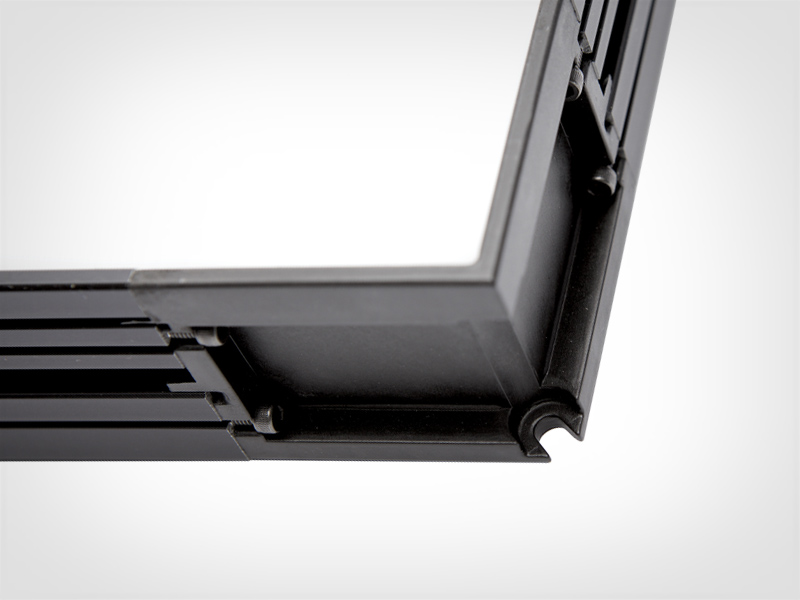

The Medium MBACK+ Overdrive is a backlight both powerful and very diffuse, dedicated to many machine vision applications. Thanks to the high power LED inside, it creates intense luminous flux, that helps cameras to see the workpieces shapes thanks to the shadow puppet effects. You can even decrease the light power when necessary. It works in continuous and strobe mode, with very short rising and falling times: 25 μs and 15 μs. Equipped with very thin edges, the Medium MBACK+ uniformly illuminates from the whole useful surface, included from the edges. No hot spot to notice !

HOMOGENEOUS & POWERFUL,
ULTRA-THIN BORDERS,
RISING TIME: 25 μs.

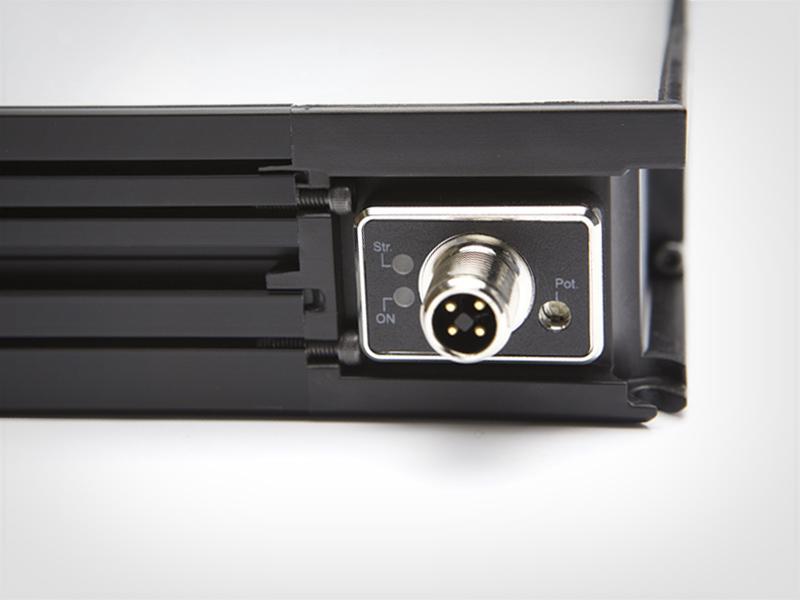

The connector can be placed on any side of the MBACK+, which can then be set up on any kind of conveyor belts. At the basis of the connector, 2 LED indicators show if the product is powered and if the strobe mode is on. The MBACK+ is perfectly adapted to quality control tasks, such as: presence/absence, edge defects, material lack. It can also be used as a direct diffuse lighting solution, to inspect shiny workpieces.
