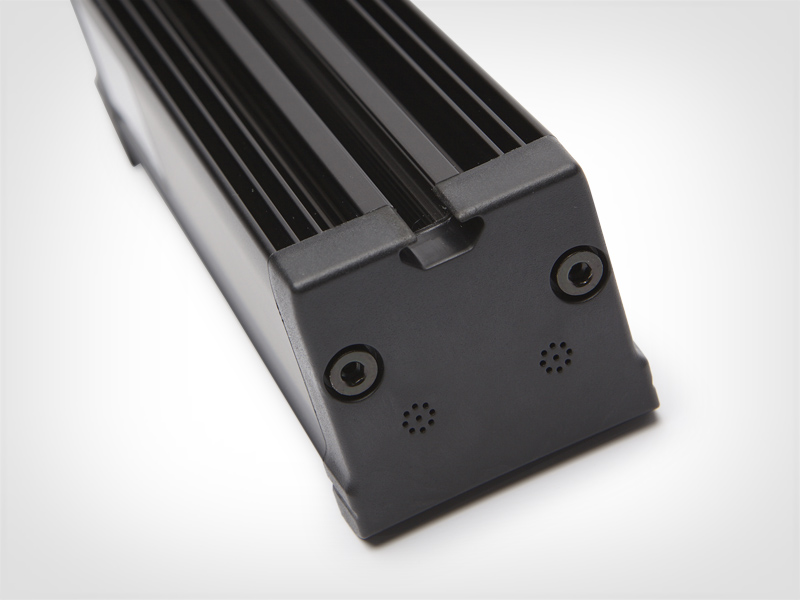

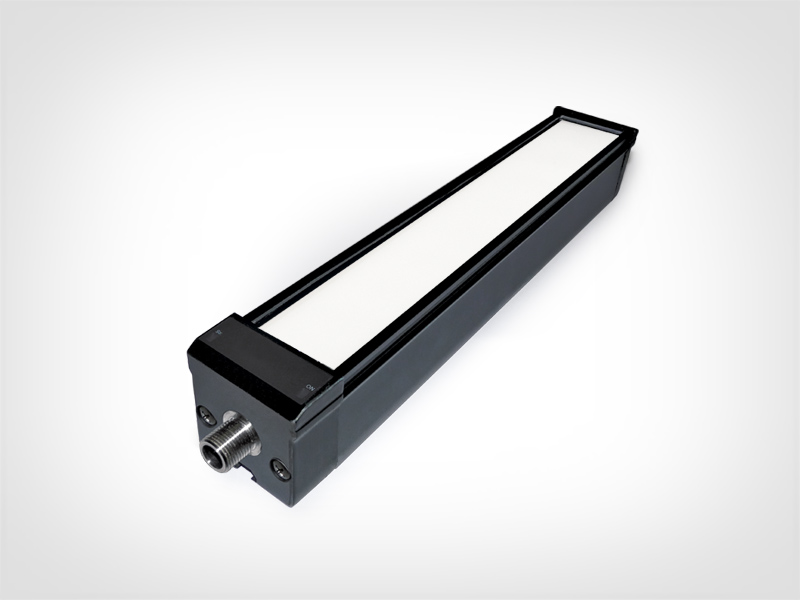

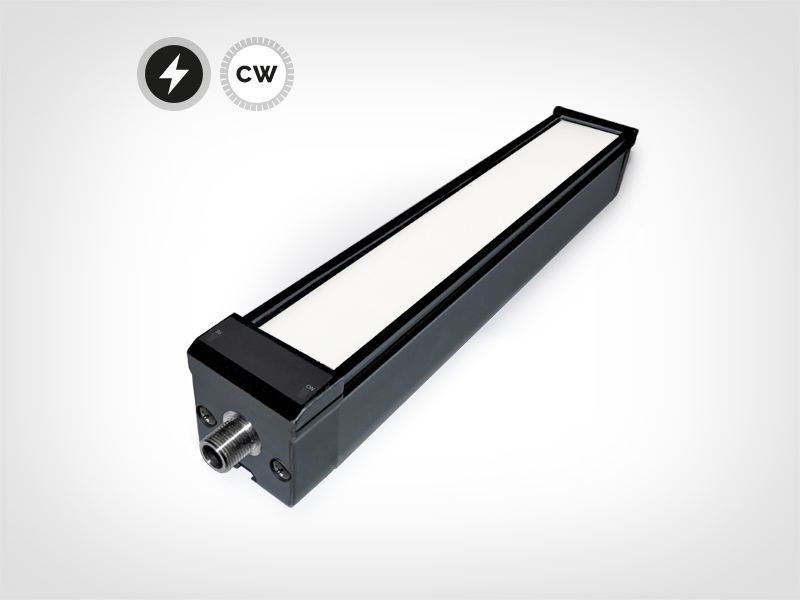

The Backlight BLBAR+ is a very powerful lighting solution, equipped with an opaque diffuser that offers a perfect diffusion of light on the whole surface, all the way to the edges. No hot spots to be seen! It’s the best addition to your camera for all machine vision inspection applications. The Backlight BLBAR+ is usually used as a traditional backlight, to make the workpieces’ outlines appear with high contrast, but it can also be used as a direct diffuse light. Its rugged packaging enables efficient LED heat dissipation. The Backlight BLBAR+ is IP65 by default. 2 LED indicators near the connector show if the product is powered. As with any other TPL Vision bar lights, users also benefit from its solid aluminium structure and its easy fixing.

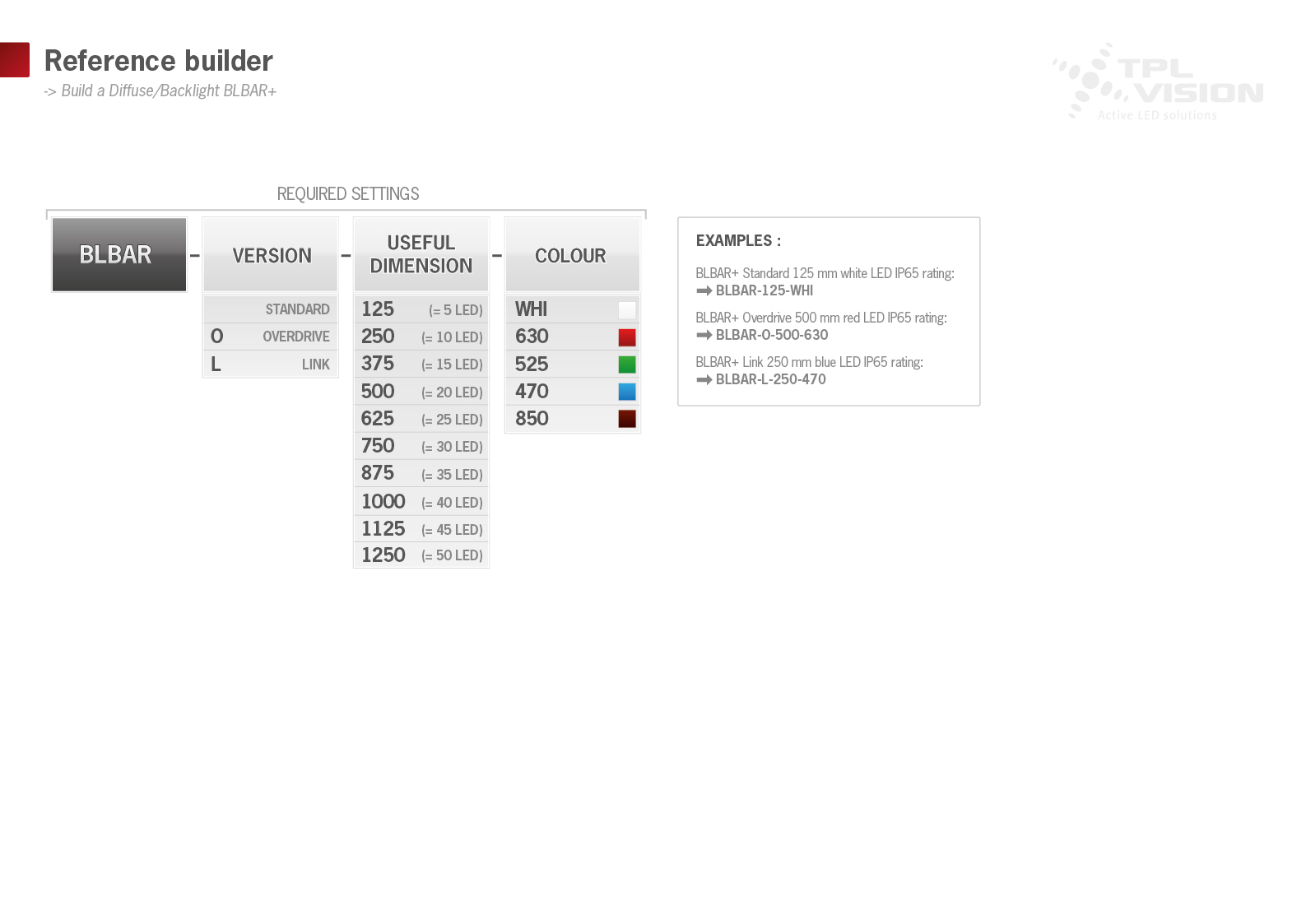

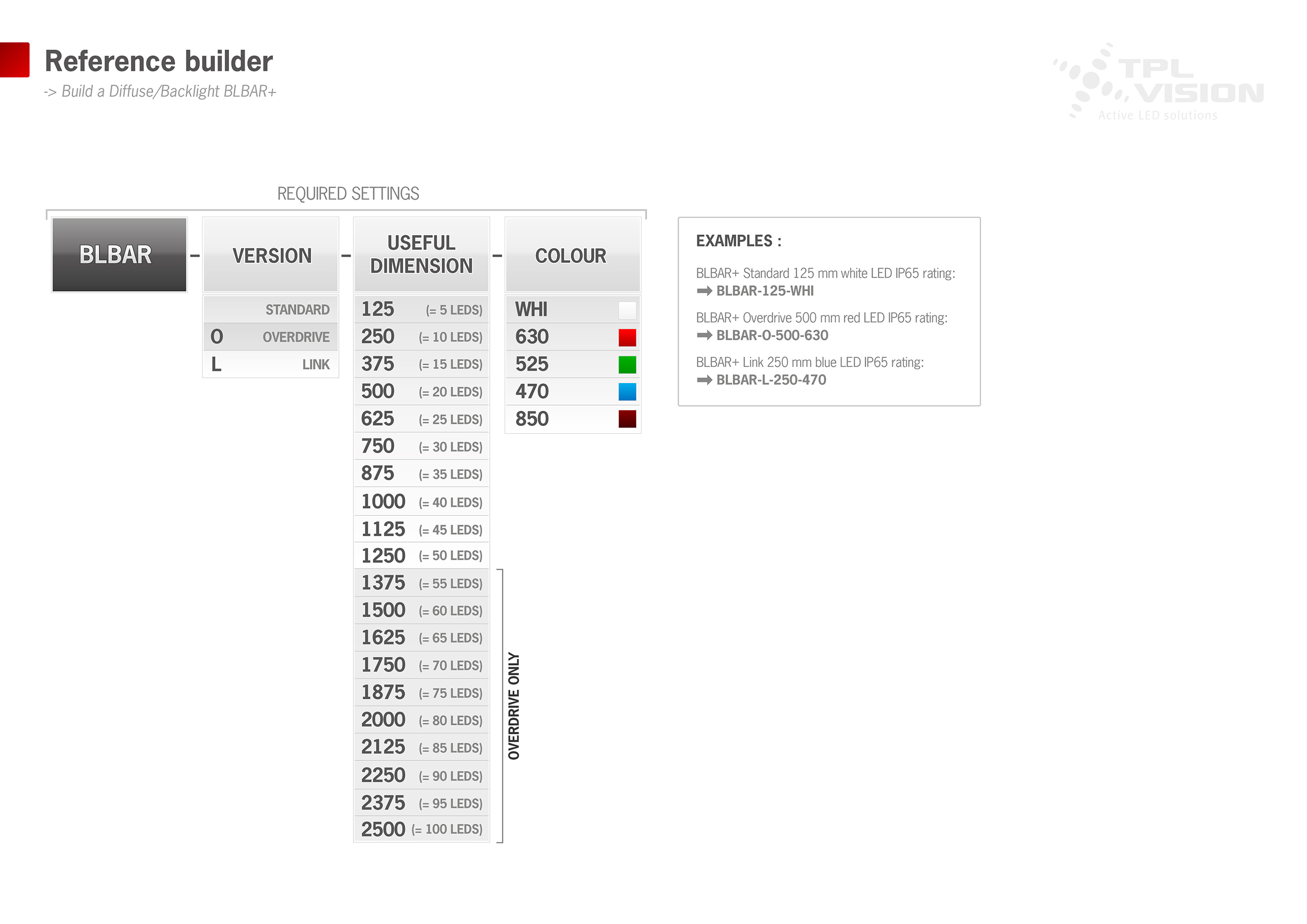

Besides the STANDARD version, 2 other versions are available:
DIRECT CONNECTION TO THE CAMERA

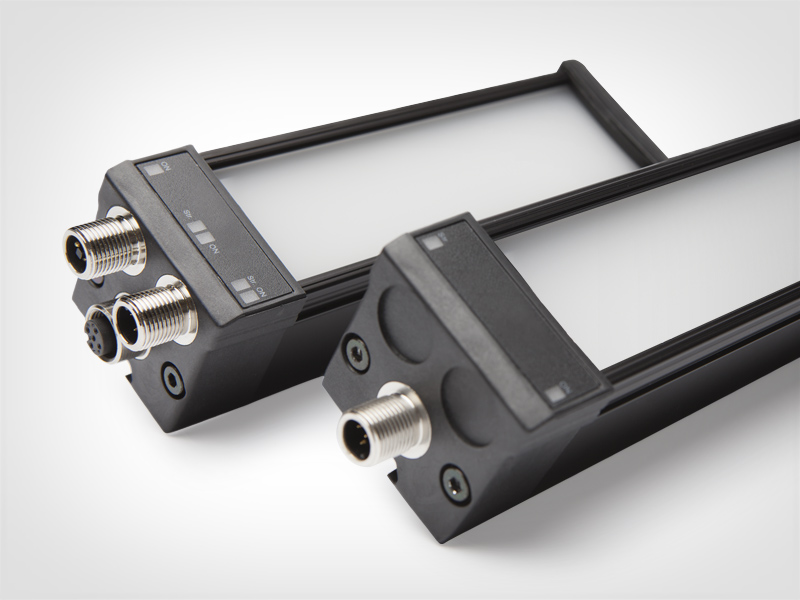

The LINK version has a specific wiring, compound of 3 M12 connectors. This enables you to easily connect the light directly to the camera and, if necessary, provide the light with additional power. You can also link several lights to each other for perfect signal synchronisation. The LINK version is an ideal fit for high-speed production lines.
OVERDRIVE UP TO X4 WITH CURRENT CONTROL

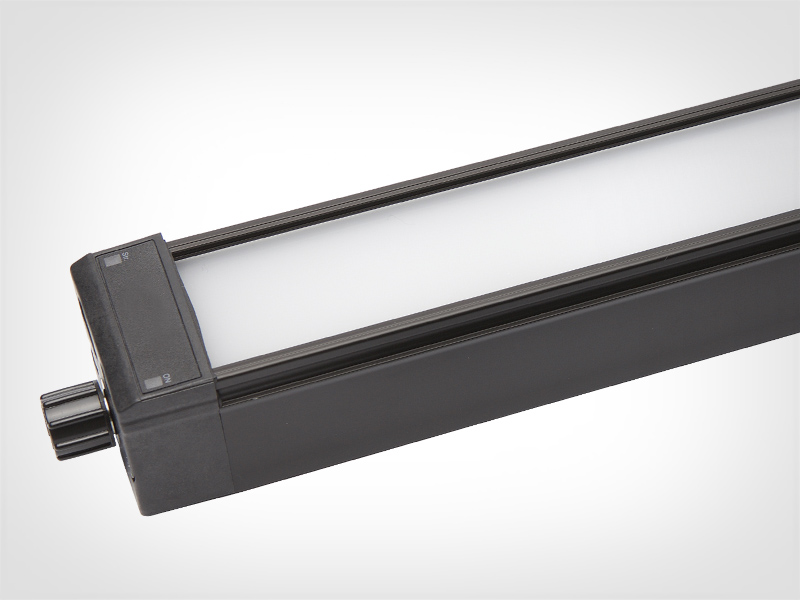

The OVERDRIVE version is just as easy to set and to use as the STANDARD version. Equipped with specific electronics, it gives the opportunity for users to overdrive on their own the lighting power. The OVERDRIVE version is dedicated to specialists who want to customize the luminous flux very precisely, so as to get the most reliable results.
During a crucial step in the automobile assembly process, a camera-based vision system is employed to verify the presence and positioning of components. Enhancing the camera’s capabilities, powerful diffuse bar lights are integrated onto a collaborative robot (cobot).
To view all the technical information, please click on the tabs below.
Besides the STANDARD version, 2 other versions are available:
DIRECT CONNECTION TO THE CAMERA
The LINK version has a specific wiring, compound of 3 M12 connectors. This enables you to easily connect the light directly to the camera and, if necessary, provide the light with additional power. You can also link several lights to each other for perfect signal synchronisation. The LINK version is an ideal fit for high-speed production lines.
OVERDRIVE UP TO X4 WITH CURRENT CONTROL
The OVERDRIVE version is just as easy to set and to use as the STANDARD version. Equipped with specific electronics, it gives the opportunity for users to overdrive on their own the lighting power. The OVERDRIVE version is dedicated to specialists who want to customize the luminous flux very precisely, so as to get the most reliable results.
During a crucial step in the automobile assembly process, a camera-based vision system is employed to verify the presence and positioning of components. Enhancing the camera’s capabilities, powerful diffuse bar lights are integrated onto a collaborative robot (cobot).
