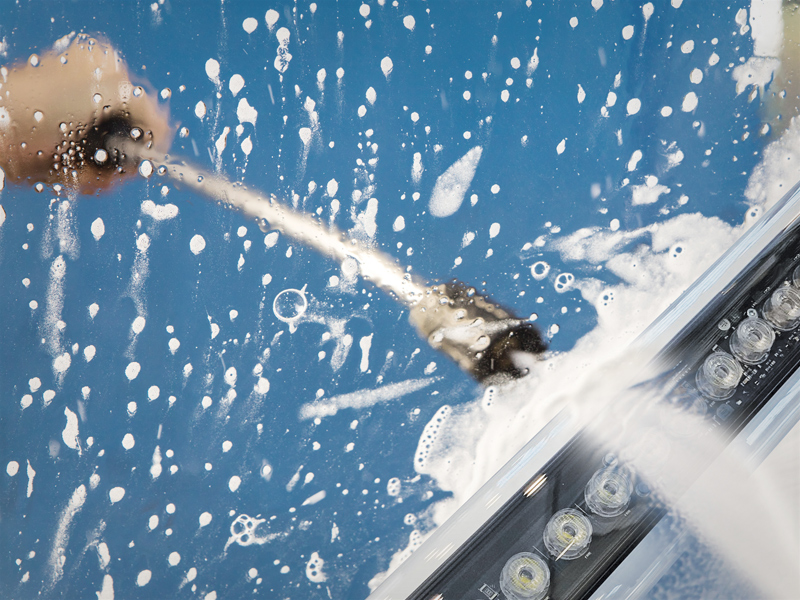

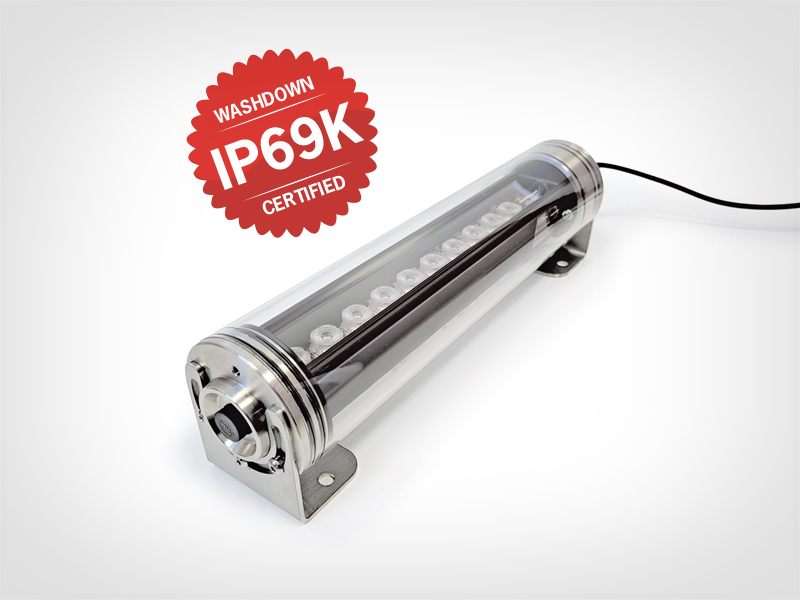

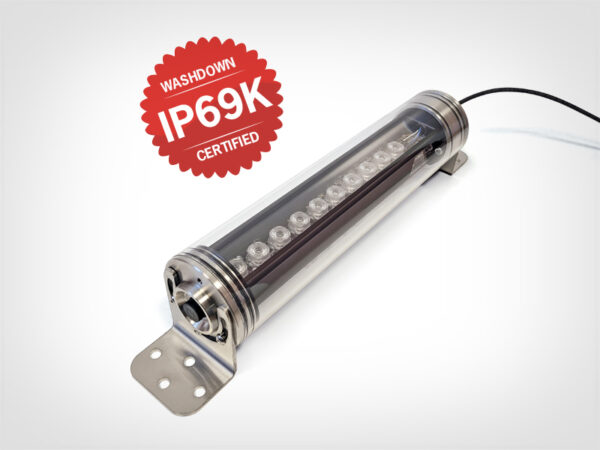

IP69K washdown barlights provide high brightness, uniform illumination in a reliable package designed to withstand the rigours of harsh chemical cleaning & de-contamination.
Our new Waterproof IP69K Washdown lights have some significant performance improvements over the older IP69K Food Bars:
* Warranty: 3 years (UV: 1 year).
See www.tpl-vision.com/services/warranty/

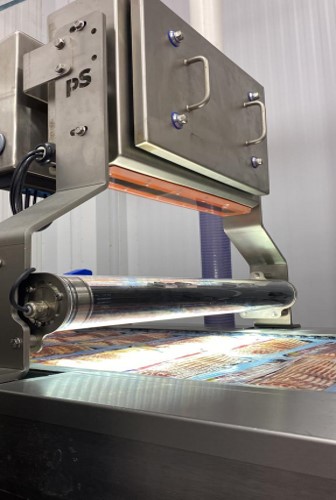

“TPL Vision has the best solutions for IP69K lights on the market. We searched the world and have tried many different lights, but nothing comes close to TPL’s quality. They have helped us surpass the industry standard and have taken our product to the next level. TPL Vision is a true partner. TPL provides outstanding service and support. We have found their responsiveness to be unmatched in the industry.”
Jeff Youngs, President and CEO, ProSpection Solutions, LLC
To view all the technical information, please click on the tabs below.
| Operating voltage | 24 VDC |
| Supplied cable length | 5 meters |
| Operating modes | Continuous and Strobe |
| Trigger (strobe) mode | PNP & NPN |
| Rise time / Fall time | 15 µs / 10 µs |
| Dimming control | Yes, 100% – 35% |
| Ambient temperature | -20°C to +60°C (-4°F to +140°F) – See Technical User Guide |
| Ambient humidity | 80% max |
| IP rating | IP69K (IEC 60529) |
| Housing | 316L stainless steel / food grade PPMA |

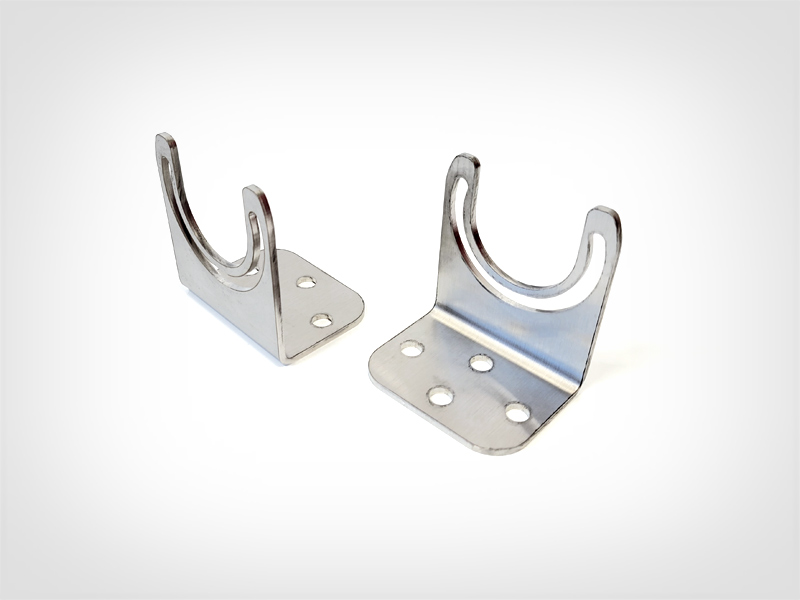

| L-Brackets (included) | Design permits 360° rotation of light |
| Warranty | 3 years (UV: 1 year) See www.tpl-vision.com/services/warranty/ |
* Warranty: 3 years (UV: 1 year).
See www.tpl-vision.com/services/warranty/
“TPL Vision has the best solutions for IP69K lights on the market. We searched the world and have tried many different lights, but nothing comes close to TPL’s quality. They have helped us surpass the industry standard and have taken our product to the next level. TPL Vision is a true partner. TPL provides outstanding service and support. We have found their responsiveness to be unmatched in the industry.”
Jeff Youngs, President and CEO, ProSpection Solutions, LLC
To view all the technical information, please click on the tabs below.
| Operating voltage | 24 VDC |
| Supplied cable length | 5 meters |
| Operating modes | Continuous and Strobe |
| Trigger (strobe) mode | PNP & NPN |
| Rise time / Fall time | 15 µs / 10 µs |
| Dimming control | Yes, 100% – 35% |
| Ambient temperature | -20°C to +60°C (-4°F to +140°F) – See Technical User Guide |
| Ambient humidity | 80% max |
| IP rating | IP69K (IEC 60529) |
| Housing | 316L stainless steel / food grade PPMA |
| L-Brackets (included) | Design permits 360° rotation of light |
| Warranty | 3 years (UV: 1 year) See www.tpl-vision.com/services/warranty/ |
