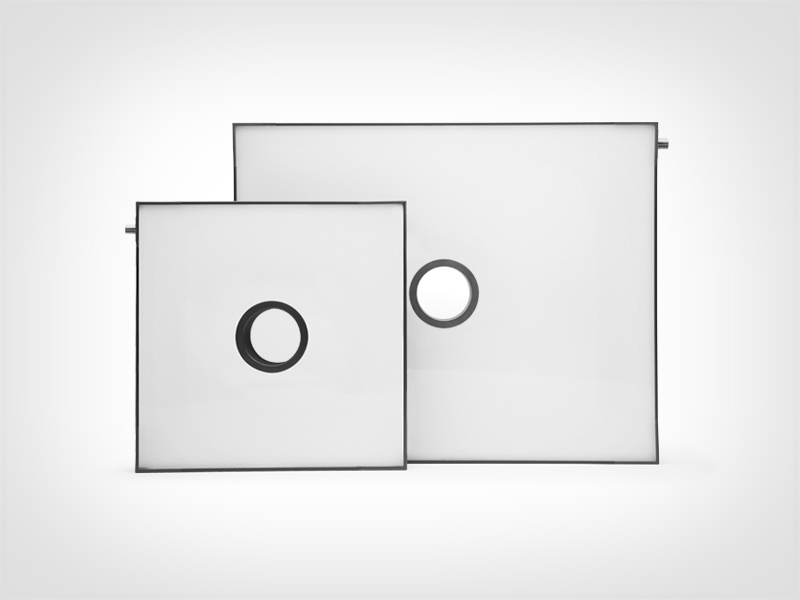

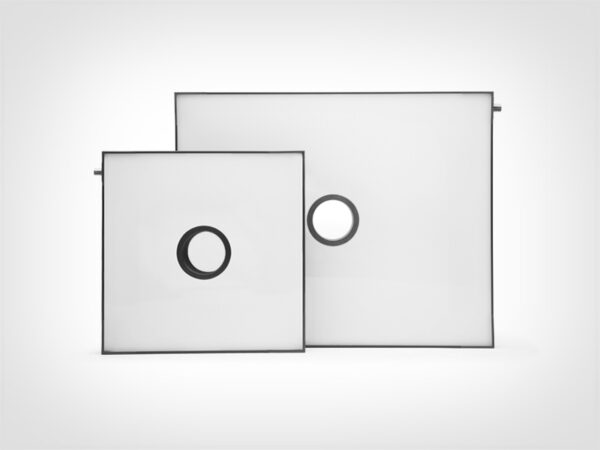

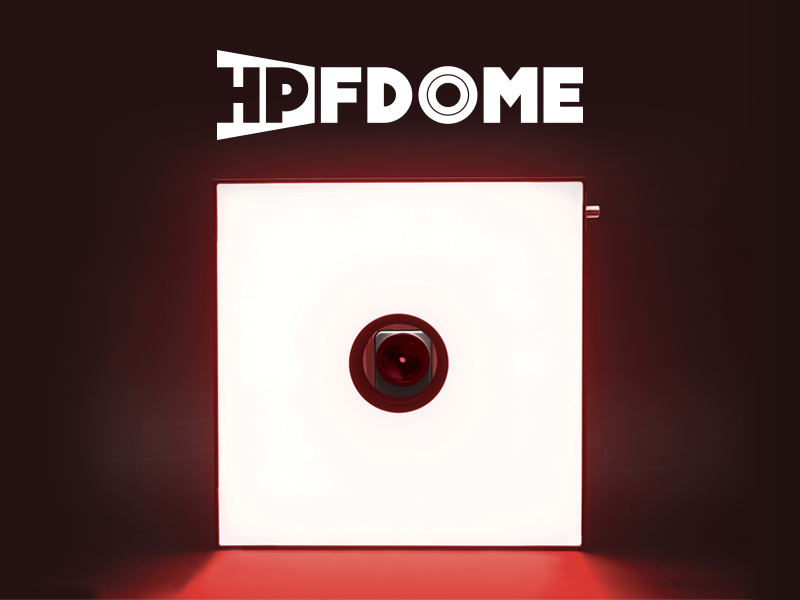

The HPFDOME is a high-power flat dome illumination solution for Machine Vision applications. This product is the next evolution of TPL Vision’s flagship MFDOME+ Standard product, carrying significant product enhancements.

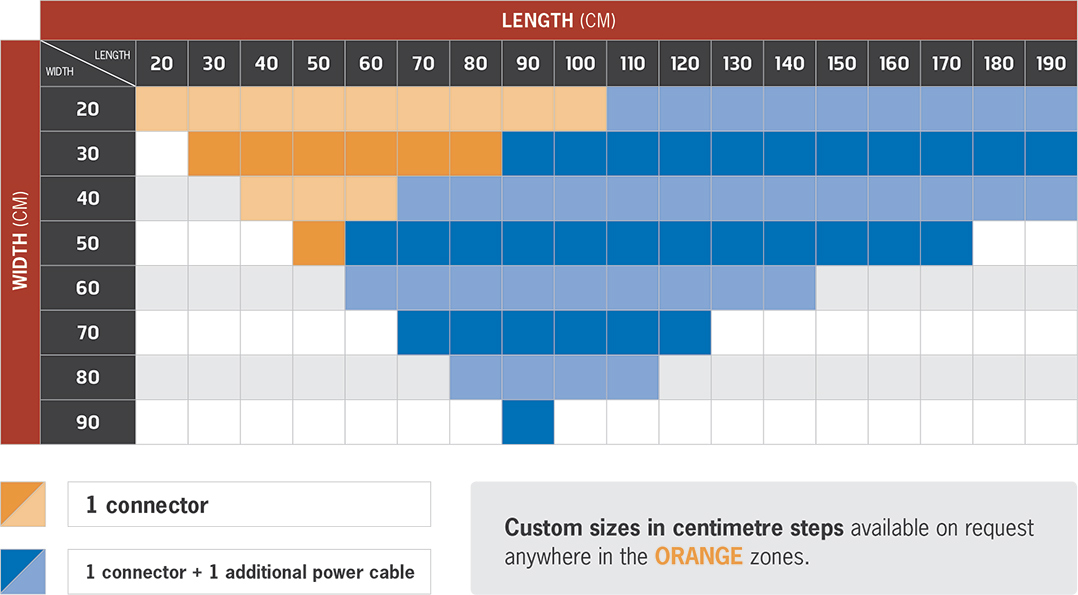

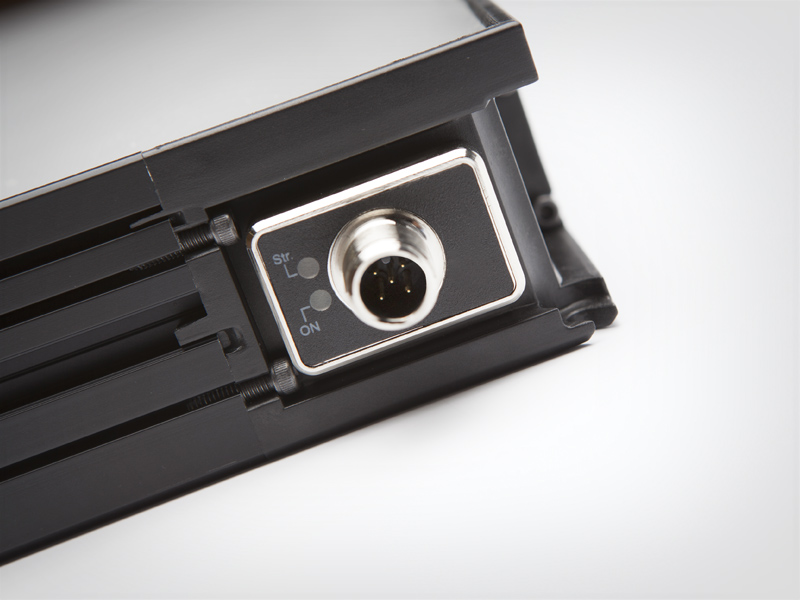

Including: brightness level up to 45 kLux*, new connector making it easier and more cost effective to integrate*, improved rising and falling times of 15μs and 10μs respectively (40% Improvement*) and custom sizes available in 1cm steps (from 200 x 200mm up to 500 x 500mm or 1000 x 200mm).

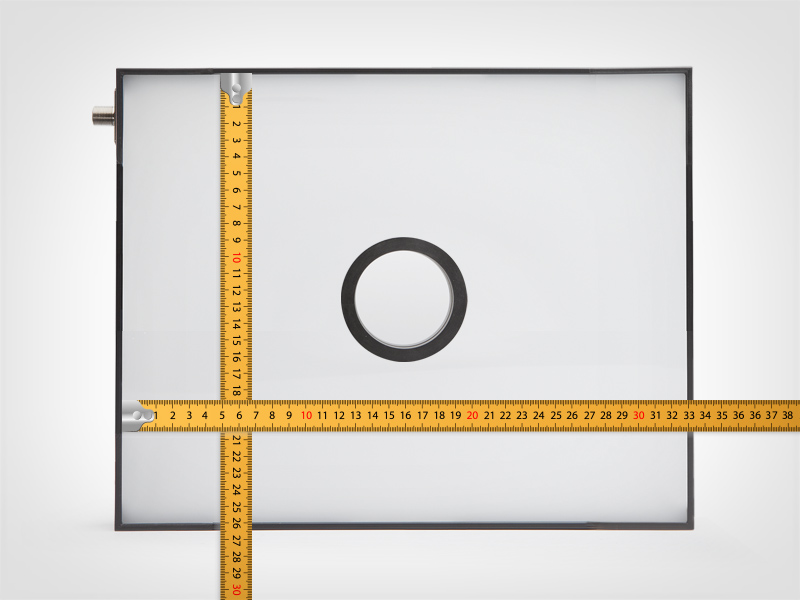

The Aluminium casing of the product can be manufactured to sizes from 200 x 200mm up to 900 x 900mm or 1900 x 400mm. This range topping illumination solution is perfect for area illuminations in robotic applications, such as pick and place, and logistics applications requiring stable images on large fields of view. Available in Red, White and Infrared, the LEDs are mounted with highly efficient lenses, engineered to distribute the highest brightness and uniformity balance for the dome lighting applications.
(*Â in continuous working, measured at the surface with the WHITE LED version of the product).

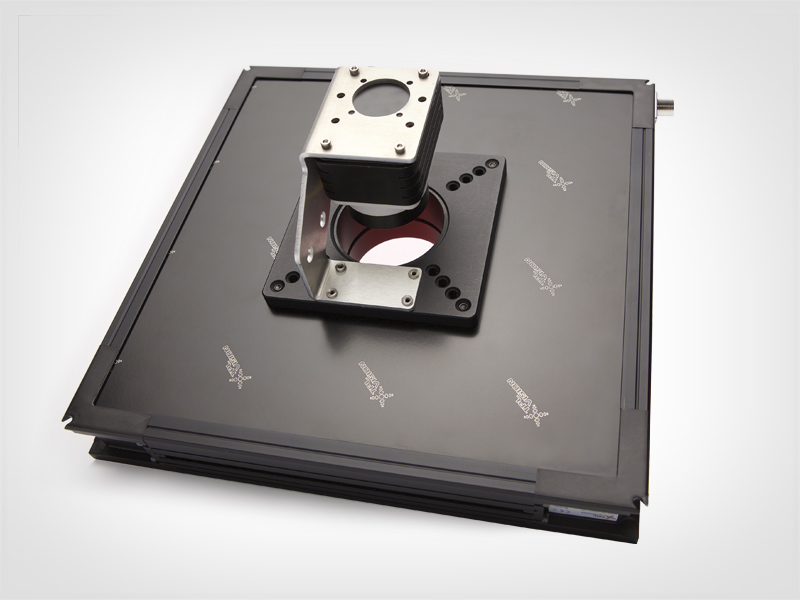

As with all TPL Vision products, the HPFDOME comes with current control integrated and are guaranteed for 3 years. The HPFDOME comes installed with a rugged mounting plate and viewing hole for all cameras (the option for more than one hole is possible). The borders of product are 4mm around the edge of the homogeneous illumination surface (85% homogeneity).

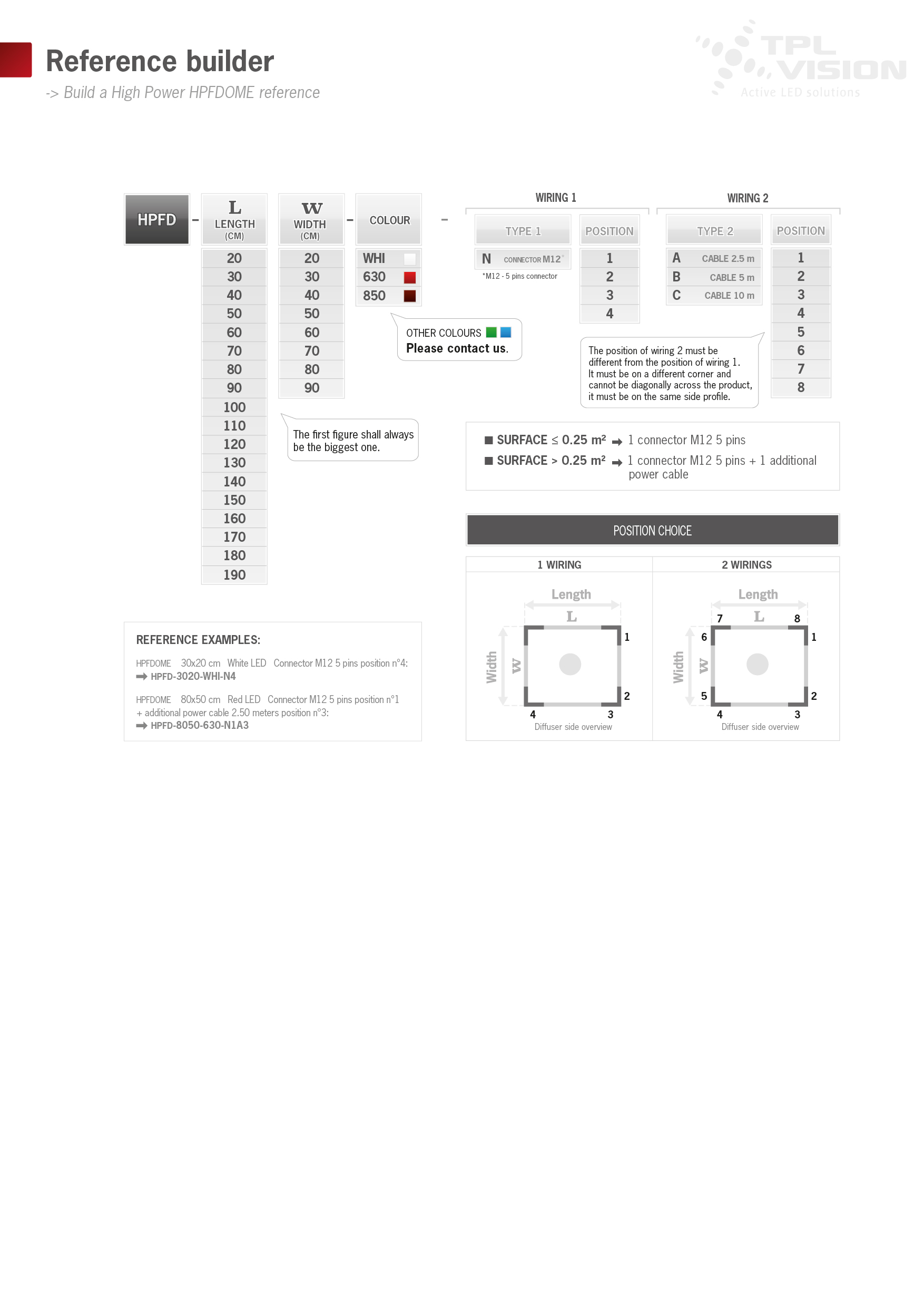

To view all the technical information, please click on the tabs below.
| MFDOME+ | HPFDOME | |
| Sizes | 200×200 mm to 900×900, or 1900 x 400mm | 200×200 mm to 900×900, or 1900 x 400mm |
| Modes | Continuous and Strobe OverDrive | Continuous and Strobe |
| Brightness level | Up to 32 kLux in CW Up to 61 kLux in OverDrive | Up to 45 kLux in CW |
| Rise and fall time | 25 μs and 15 μs | 15μs and 10μs |
| OverDrive | Yes | No |

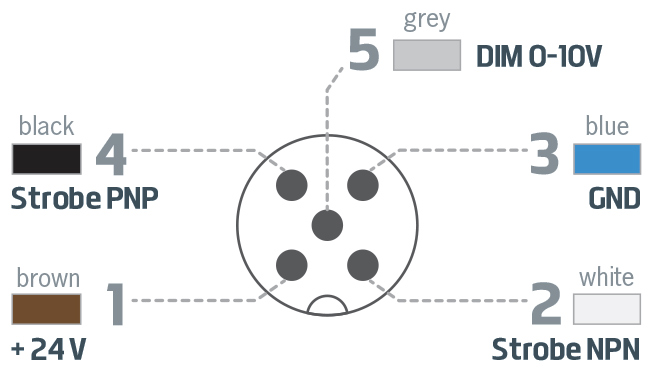

| Connector | M12 T-Power 4-P | M12 5-P with remote dimming control |
| Connector position | Flexible, see technical sheet | Flexible, see technical sheet |
| IP Protection | IP40 | IP40 |
| Customisation options | No | Custom sizes available in 1 cm steps. Two-hole version available on request. |
As with all TPL Vision products, the HPFDOME comes with current control integrated and are guaranteed for 3 years. The HPFDOME comes installed with a rugged mounting plate and viewing hole for all cameras (the option for more than one hole is possible). The borders of product are 4mm around the edge of the homogeneous illumination surface (85% homogeneity).
To view all the technical information, please click on the tabs below.
| MFDOME+ | HPFDOME | |
| Sizes | 200×200 mm to 900×900, or 1900 x 400mm | 200×200 mm to 900×900, or 1900 x 400mm |
| Modes | Continuous and Strobe OverDrive | Continuous and Strobe |
| Brightness level | Up to 32 kLux in CW Up to 61 kLux in OverDrive | Up to 45 kLux in CW |
| Rise and fall time | 25 μs and 15 μs | 15μs and 10μs |
| OverDrive | Yes | No |
| Connector | M12 T-Power 4-P | M12 5-P with remote dimming control |
| Connector position | Flexible, see technical sheet | Flexible, see technical sheet |
| IP Protection | IP40 | IP40 |
| Customisation options | No | Custom sizes available in 1 cm steps. Two-hole version available on request. |
