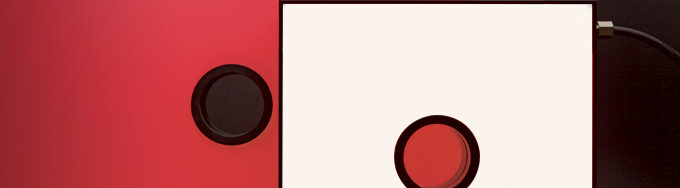

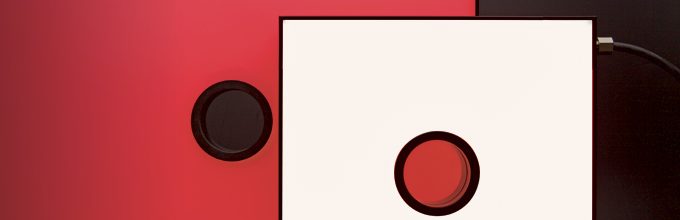

Flat dome lights are a type of dome lighting used in machine vision to provide even and consistent illumination for imaging. They are designed to provide a diffuse light source to reduce glare and shadows, and can be used in a variety of applications such as quality control, inspection, and robotics. Flat domes come with a hole in the centre for the camera and are often used for homogeneously illuminating large field of view applications.
Showing all 2 results
The HPFDOME is a high-power flat dome illumination solution for Machine Vision applications. This product is the next evolution of TPL Vision’s flagship MFDOME+ Standard product, carrying significant product enhancements.
Including: brightness level up to 45 kLux*, new connector making it easier and more cost effective to integrate*, improved rising and falling times of 15μs and 10μs respectively (40% Improvement*) and custom sizes available in 1cm steps (from 200 x 200mm up to 500 x 500mm or 1000 x 200mm).
The Aluminium casing of the product can be manufactured to sizes from 200 x 200mm up to 900 x 900mm or 1900 x 400mm. This range topping illumination solution is perfect for area illuminations in robotic applications, such as pick and place, and logistics applications requiring stable images on large fields of view. Available in Red, White and Infrared, the LEDs are mounted with highly efficient lenses, engineered to distribute the highest brightness and uniformity balance for the dome lighting applications.
(* in continuous working, measured at the surface with the WHITE LED version of the product).
Both powerful and very diffuse, the Medium Flat MFDOME+ Overdrive can deal with many machine vision applications. The MFDOME+ has been designed to detect small pieces in a container, to highlight thermoformed products or also to improve contrasts on workpieces made of several materials. It works in continuous and strobe mode, with very short rising and falling times: 25 μs and 15 μs.
Equipped with very thin borders, the MFDOME+ uniformly illuminates from the whole useful surface, included from the edges. No hot spot to notice ! Very thin, the MFDOME+ gets a hole in the middle to insert the camera’s lens. And using the TPL Vision mounting accessories (in option), you can easily integrate it thanks to the mounting plate.
