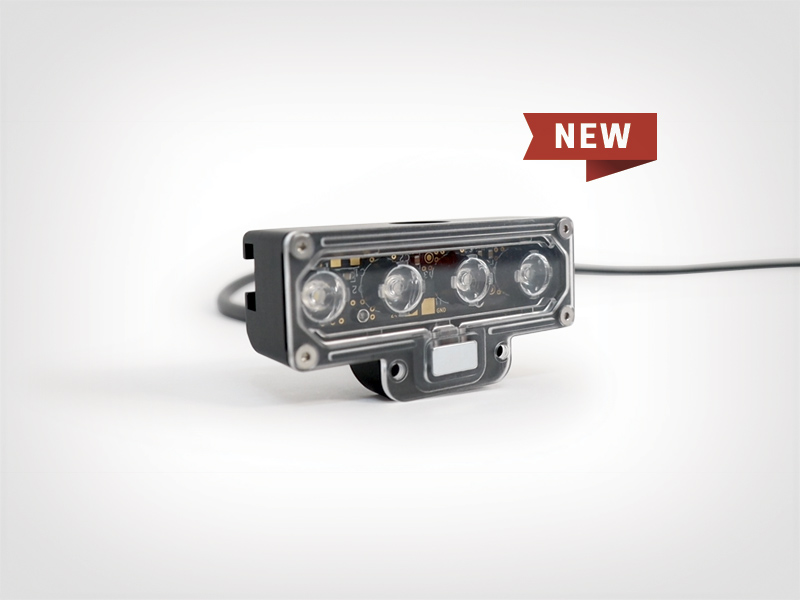

Modular M-TBAR

Miniature modular bar light with built-in flexibility. The M-TBAR is a compact, IP67-rated tiny LED bar light that allows users to change the beam angle with TPL Vision’s Angle Changers. Offering unparalleled flexibility, the M-TBAR provides a convenient way to expertly illuminate small-scale vision applications requiring a robust lighting solution. Application areas include code reading, quality control, component verification, label- and packaging inspection, robotics and more.

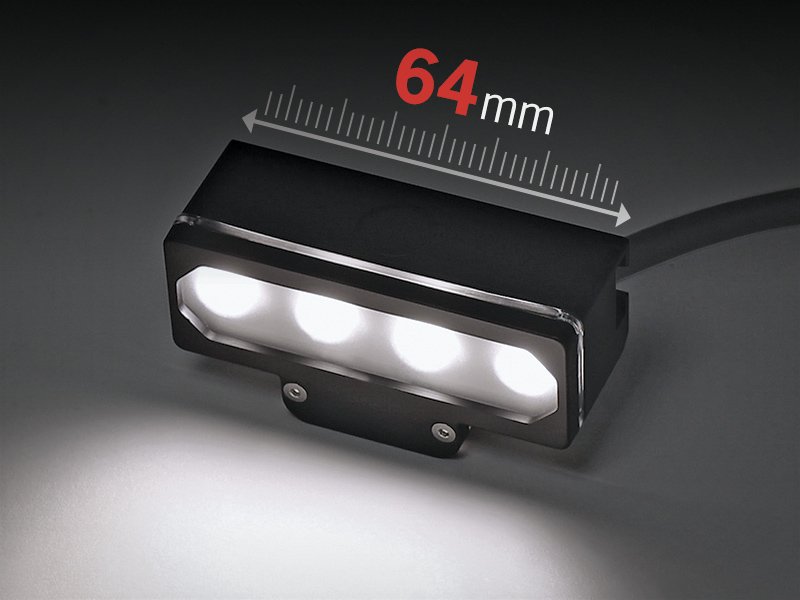

  • Small bar light suited to machine vision applications in confined spaces
  • Compact but powerful, designed for easy integration

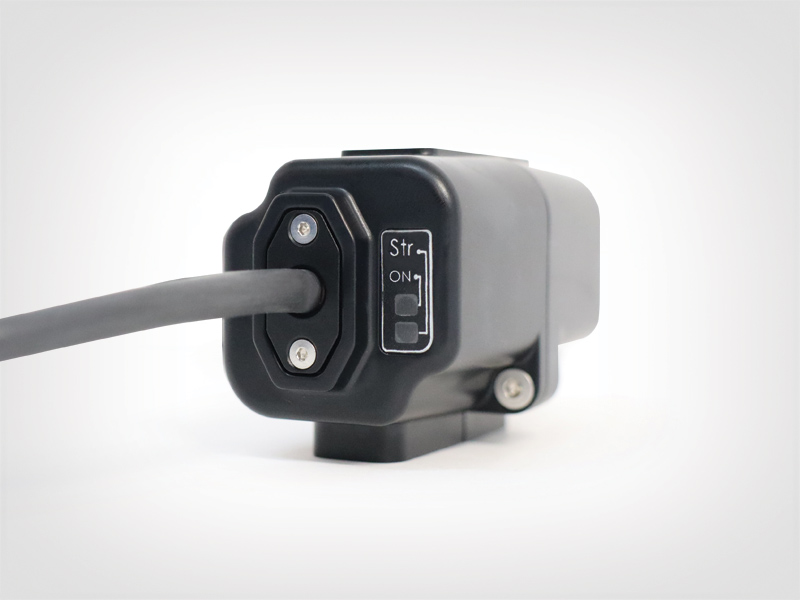

  • Auto-strobe OverDrive illumination with robust packaging & integrated current control

Product introduction

Key features

  • Available in white (4800K), red (630nm), IR (850nm), green (525nm), blue (470nm)
  • Lightweight and robust IP67-rated design – perfect for end of arm tooling and other robotics applications (light unit: 60g, box: 72g)
  • Chain together for a longer bar with no change to LED spacing

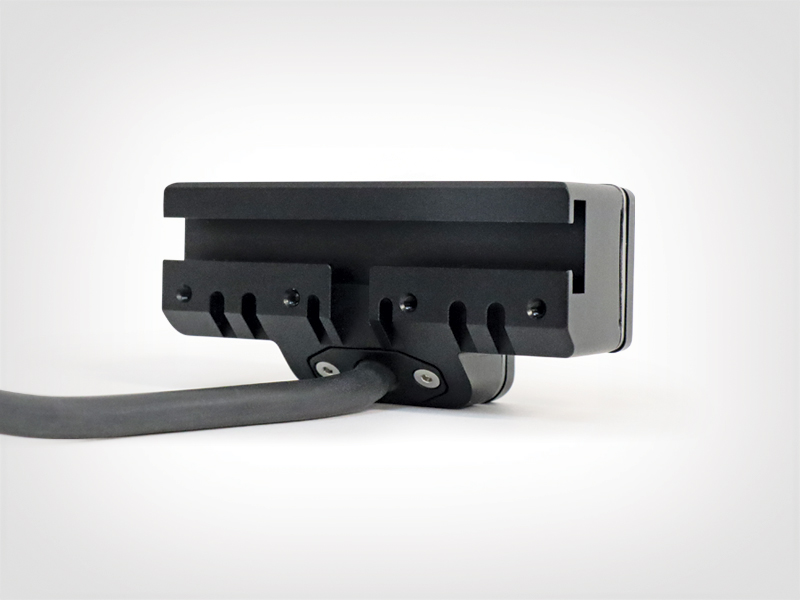

  • Easy T-SLOT mounting (M4 nuts included)
  • Standard M12 A-coded connector
  • Flexible cable length between the light and power supply – up to 10m
  • Dimming on continuous and strobe OverDrive mode
  • Perfect for use with most machine vision and code reading cameras on the market
M-TBAR mini bar light for machine vision

Compatible with Angle Changers

modular m tbar

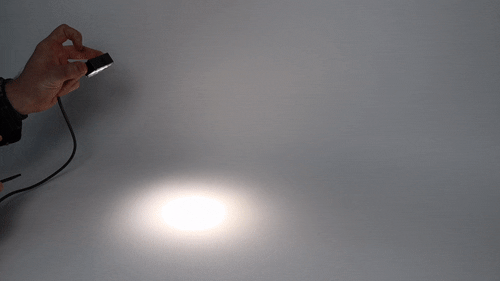

Angle Changers are robust micro-optic diffusers that can be used to widen the beam angle of the M-TBAR’s standard ±5° lens angle, providing flexibility across the field of view. Angle Changer options include:

  • Narrow ±10° (Standard & Polarised)
  • Medium ±17°(Standard & Polarised)
  • Wide ±25°(Standard & Polarised)
  • Line ±9-16°(Standard & Polarised)
  • Polariser alone

Applications

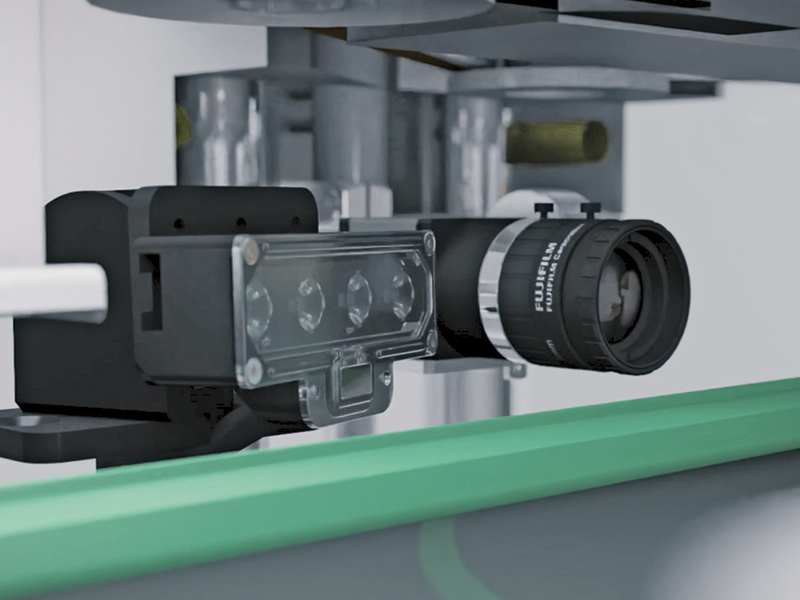

The Modular M-TBAR comes with strobe and continuous working in one product. The built-in strobe OverDrive feature makes it perfect for the automotive industry, logistics, electronics manufacturing, and other robotics, quality control and machine vision inspection applications including:

  • code reading
  • label inspection
  • part identification and validation
  • placement inspection
  • traceability
  • …and more!

Technical information

To view all the technical information, please click on the tabs below.

Lighting method

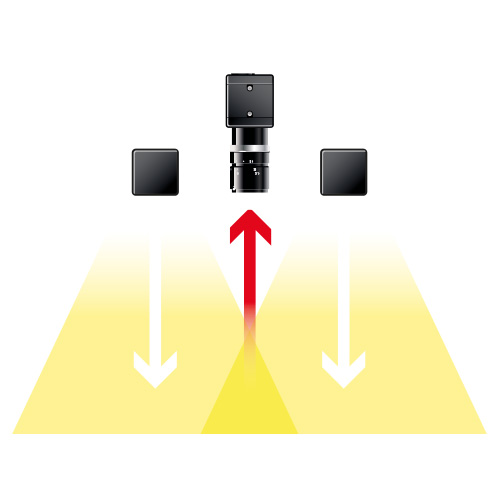

Direct bright field lighting for machine vision
modular m tbar

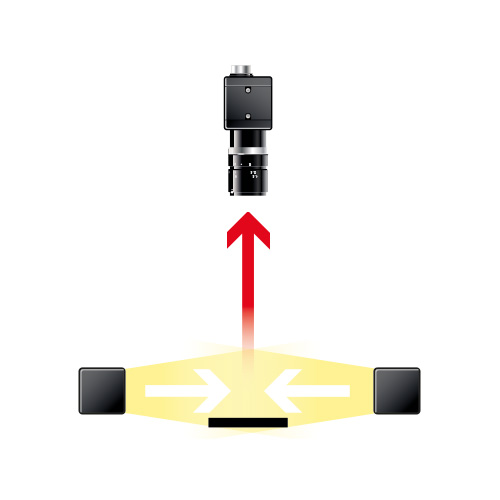

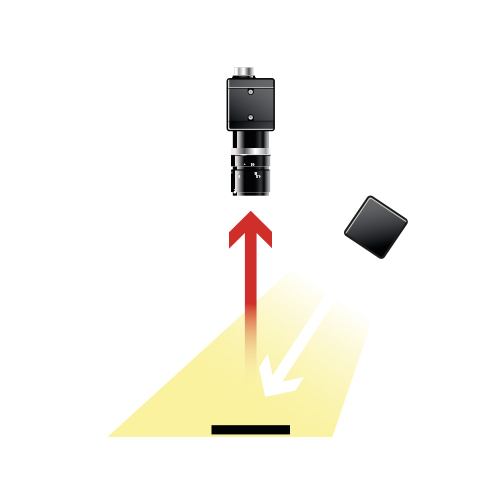

Dark field lighting for machine vision

Irradiance

modular m tbar

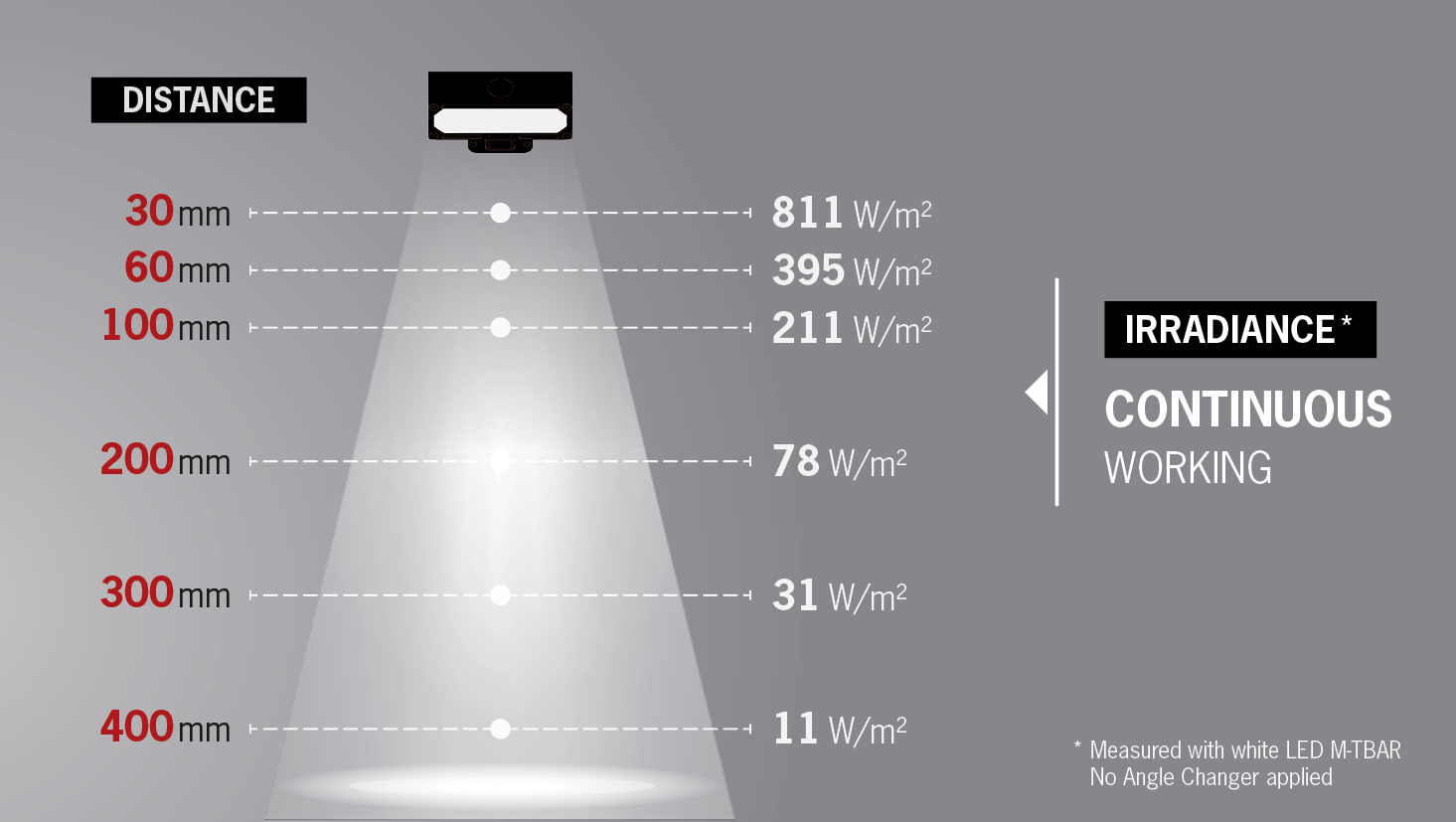

Modular M-TBAR: irradiance in Continuous Working
modular m tbar

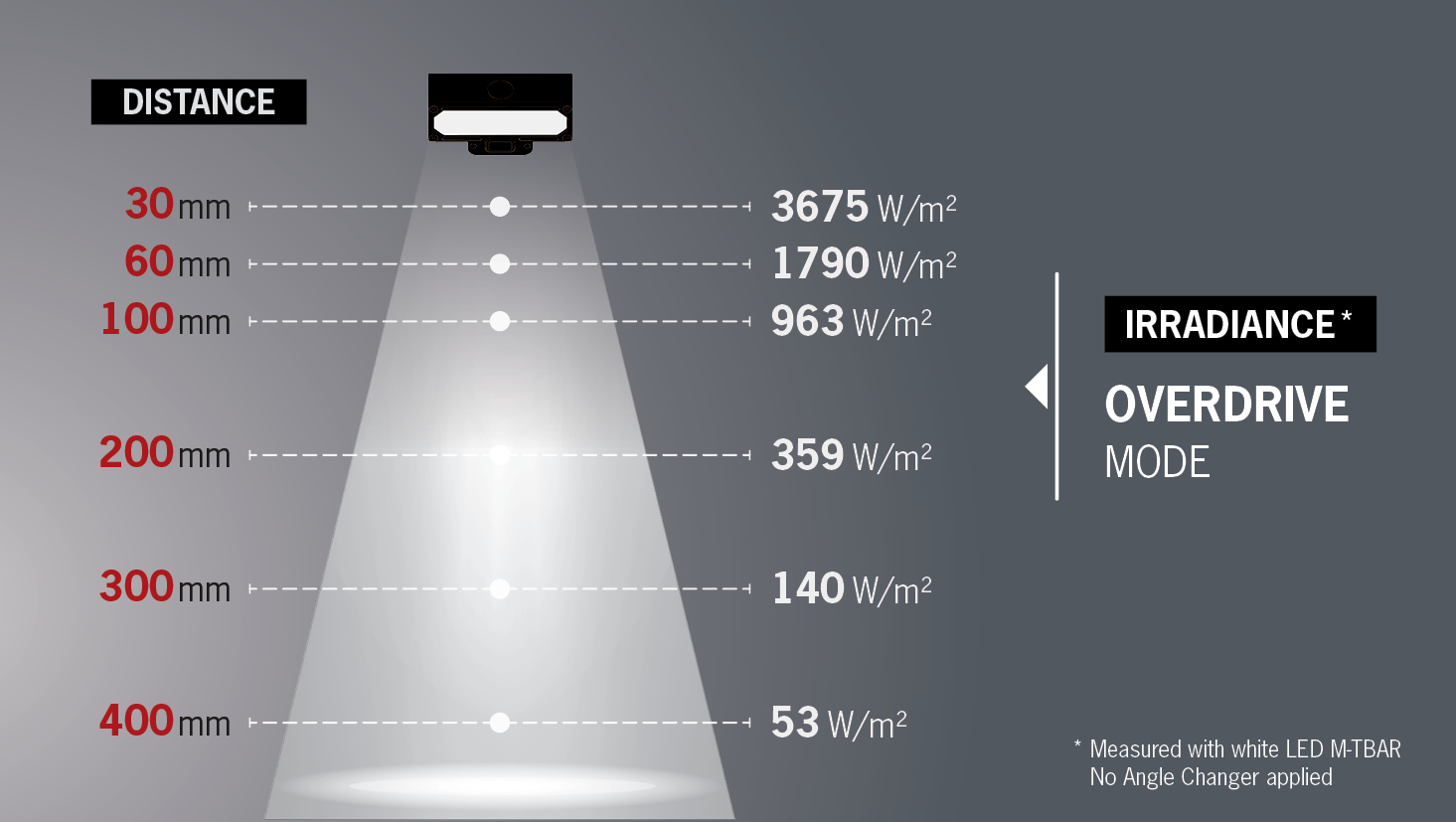

Modular M-TBAR: irradiance in Strobe Mode

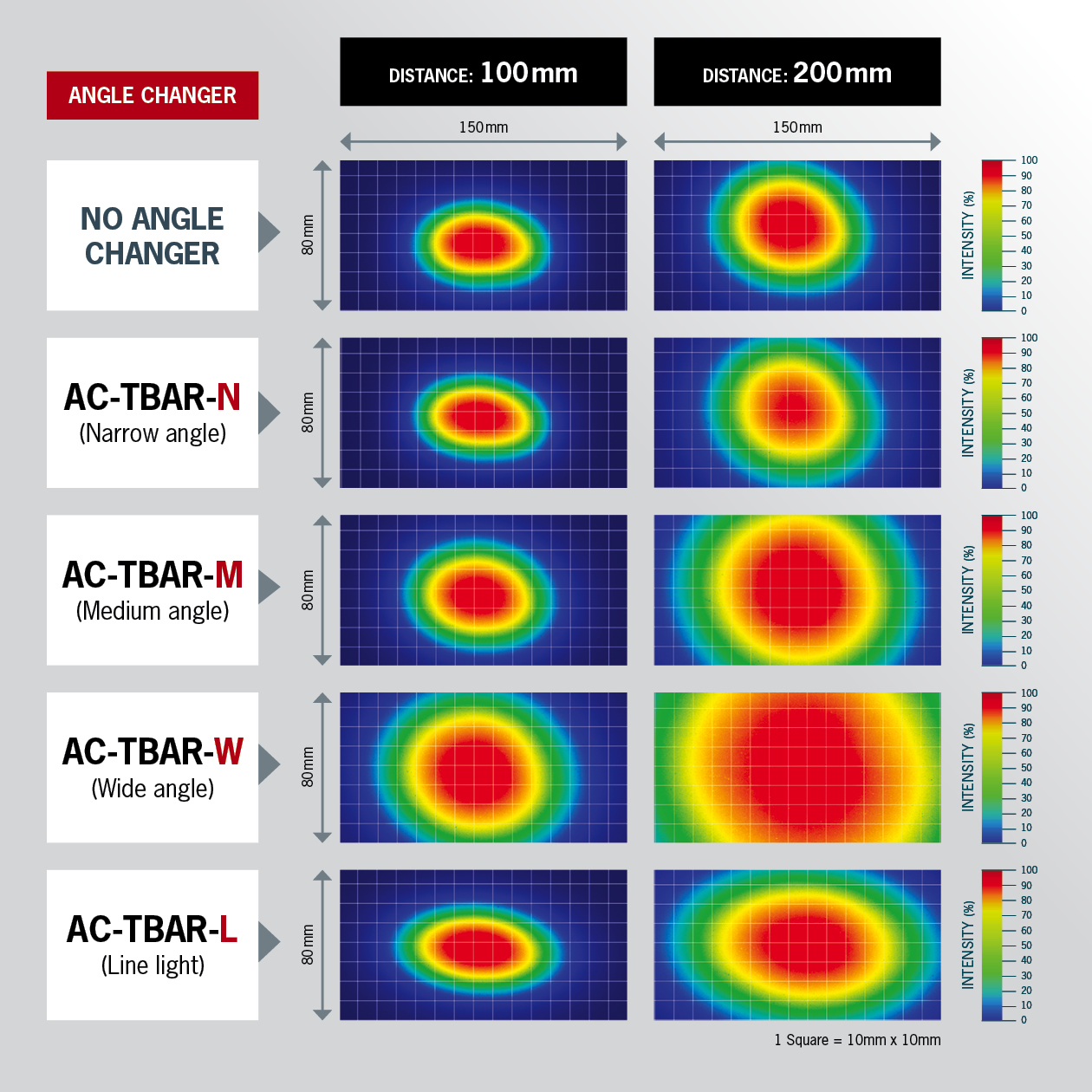

Homogeneity maps

modular m tbar

Reference builder

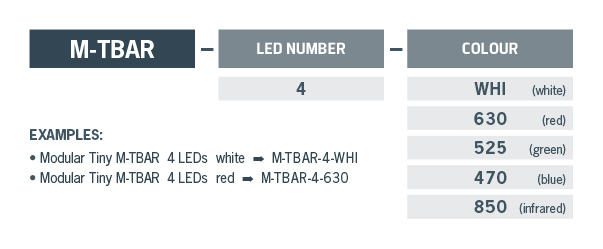

M-TBAR Reference Builder

Product introduction

Key features

  • Available in white (4800K), red (630nm), IR (850nm), green (525nm), blue (470nm)
  • Lightweight and robust IP67-rated design – perfect for end of arm tooling and other robotics applications (light unit: 60g, box: 72g)
  • Chain together for a longer bar with no change to LED spacing
  • Easy T-SLOT mounting (M4 nuts included)
  • Standard M12 A-coded connector
  • Flexible cable length between the light and power supply – up to 10m
  • Dimming on continuous and strobe OverDrive mode
  • Perfect for use with most machine vision and code reading cameras on the market
M-TBAR mini bar light for machine vision

Compatible with Angle Changers

modular m tbar

Angle Changers are robust micro-optic diffusers that can be used to widen the beam angle of the M-TBAR’s standard ±5° lens angle, providing flexibility across the field of view. Angle Changer options include:

  • Narrow ±10° (Standard & Polarised)
  • Medium ±17°(Standard & Polarised)
  • Wide ±25°(Standard & Polarised)
  • Line ±9-16°(Standard & Polarised)
  • Polariser alone

Applications

The Modular M-TBAR comes with strobe and continuous working in one product. The built-in strobe OverDrive feature makes it perfect for the automotive industry, logistics, electronics manufacturing, and other robotics, quality control and machine vision inspection applications including:

  • code reading
  • label inspection
  • part identification and validation
  • placement inspection
  • traceability
  • …and more!

Technical information

To view all the technical information, please click on the tabs below.

Lighting method

Direct bright field lighting for machine vision
modular m tbar
Dark field lighting for machine vision

Irradiance

modular m tbar
Modular M-TBAR: irradiance in Continuous Working
modular m tbar
Modular M-TBAR: irradiance in Strobe Mode

Homogeneity maps

modular m tbar

Reference builder

M-TBAR Reference Builder
