Modular M-TRING

Compact, modular machine vision ring light featuring both opaque and transparent diffuser options and Angle Changer flexibility. This versatile IP67-rated LED ring light allows users to easily customise their illumination output. With a built-in OverDrive function, the M-TRING’s 12 powerful LEDs deliver intense lighting, perfect for directly illuminating circular areas. Its lightweight and robust design ensures seamless integration with machine vision systems, cameras, and robot arms.

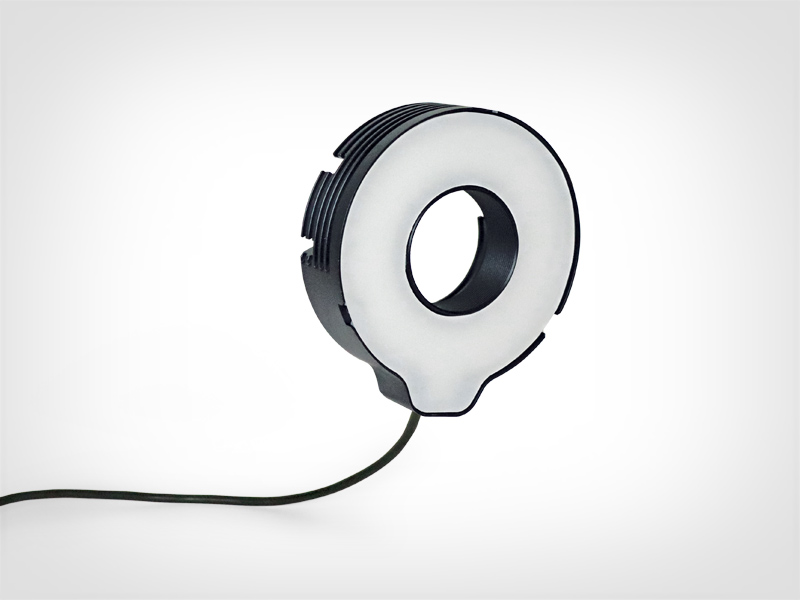

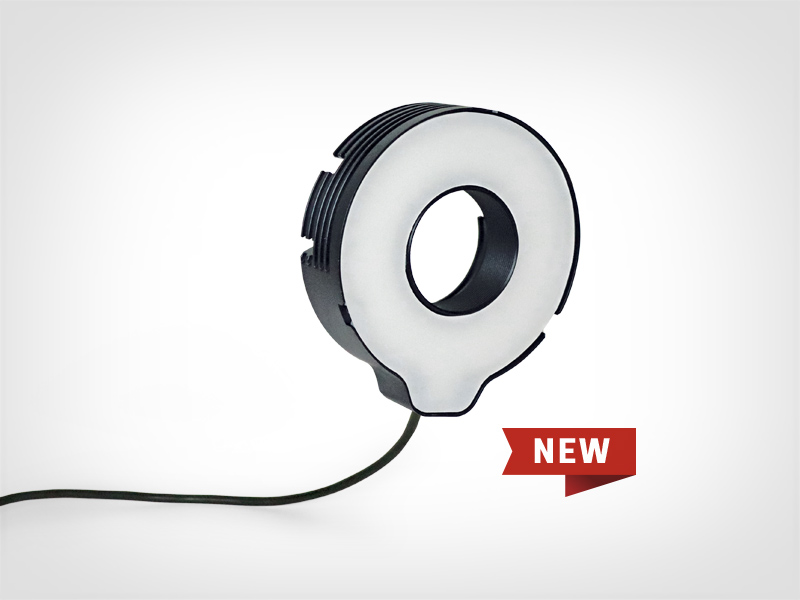

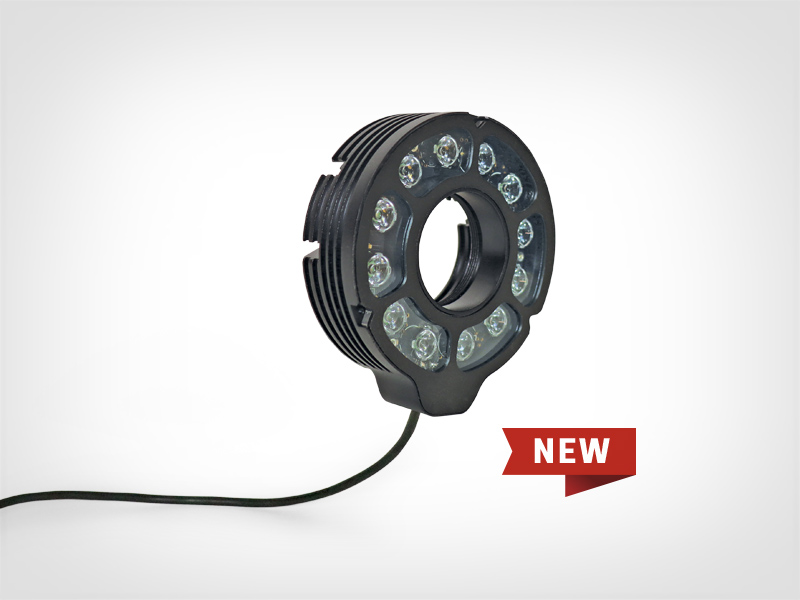

The M-TRING is available in two versions (DO-opaque and DT-transparent). The transparent version delivers the highest output and performs well at different working distances, while the opaque version excels at inspecting shiny, reflective parts by effectively concealing any visible LED hotspots. Ideal for precision machinery, robotics, 2D code reading, and small-scale quality inspection applications.

  • Continuous and Strobe OverDrive mode with dimming
  • 37 mm internal diameter allows direct mounting to C-mount lenses
  • Simple installation and use with current control integrated onto the cable

Product introduction

High-Power Ring Lights for Machine Vision

  • Available in white (4800K), red (630nm), IR (850nm), green (525nm), blue (470nm)
  • Two different versions with transparent or opaque diffuser
  • Robust industrial design for the toughest environments
  • Easy mounting for any working distance with flexible cable length

Direct Attachment to C-Mount Lenses

modular m tring

The M-TRING can be easily attached to C-mount lenses using an adapter, integrating the lighting system directly without the need for extra brackets or fastening components. This direct connection not only saves space, but ensures that the ring light is perfectly centred and aligned with the camera’s field of view, providing optimal illumination for the object being inspected.

Compatible With Angle Changers

Compatible with the transparent diffuser version, Angle Changers enhance the adaptability of ring lights to suit different applications. By clipping the Angle Changers to the ring light, users can easily adjust the angle of illumination and amount of diffusion.

No need to take the product apart! Featuring magnetic attachments for effortless installation and removal, and screws for fixed mounting, Angle Changers ensure adaptability in dynamic environments and evolving application specifications.

m tring angle changers

Featuring 8 different options, the M-TRING Angle Changers offer comprehensive control over adjusting brightness and intensity for the illuminated area, using only a few accessories. Compatible options include:

  • Narrow (±10°)
  • Medium (±17°)
  • Wide (±25°)
  • Converging (22° inwards)
  • Polarised versions and polariser alone.

Converging Light Angle Changers

modular m tring

The innovative Converging Angle Changer* is a newly developed feature, eliminating the “halo” effect typical of ring lights, and concentrating illumination in the centre of the field of view. By concentrating light at a 22° angle in the centre of the field of view, the Converging AC enables users to quickly and easily achieve a distinct and focused illumination style. Combined with the powerful output of the M-TRING, this type of lighting is ideal for small-scale vision systems requiring intense lighting for the imaging of a specific area.

*Patent pending.

TECHNICAL INFORMATION

To view all the technical information, please click on the tabs below.

Lighting method

Homogeneity

modular m tring

Irradiance

modular m tring
modular m tring

Reference builder

modular m tring



Product introduction

High-Power Ring Lights for Machine Vision

  • Available in white (4800K), red (630nm), IR (850nm), green (525nm), blue (470nm)
  • Two different versions with transparent or opaque diffuser
  • Robust industrial design for the toughest environments
  • Easy mounting for any working distance with flexible cable length

Direct Attachment to C-Mount Lenses

modular m tring

The M-TRING can be easily attached to C-mount lenses using an adapter, integrating the lighting system directly without the need for extra brackets or fastening components. This direct connection not only saves space, but ensures that the ring light is perfectly centred and aligned with the camera’s field of view, providing optimal illumination for the object being inspected.

Compatible With Angle Changers

Compatible with the transparent diffuser version, Angle Changers enhance the adaptability of ring lights to suit different applications. By clipping the Angle Changers to the ring light, users can easily adjust the angle of illumination and amount of diffusion.

No need to take the product apart! Featuring magnetic attachments for effortless installation and removal, and screws for fixed mounting, Angle Changers ensure adaptability in dynamic environments and evolving application specifications.

m tring angle changers

Featuring 8 different options, the M-TRING Angle Changers offer comprehensive control over adjusting brightness and intensity for the illuminated area, using only a few accessories. Compatible options include:

  • Narrow (±10°)
  • Medium (±17°)
  • Wide (±25°)
  • Converging (22° inwards)
  • Polarised versions and polariser alone.

Converging Light Angle Changers

modular m tring

The innovative Converging Angle Changer* is a newly developed feature, eliminating the “halo” effect typical of ring lights, and concentrating illumination in the centre of the field of view. By concentrating light at a 22° angle in the centre of the field of view, the Converging AC enables users to quickly and easily achieve a distinct and focused illumination style. Combined with the powerful output of the M-TRING, this type of lighting is ideal for small-scale vision systems requiring intense lighting for the imaging of a specific area.

*Patent pending.
